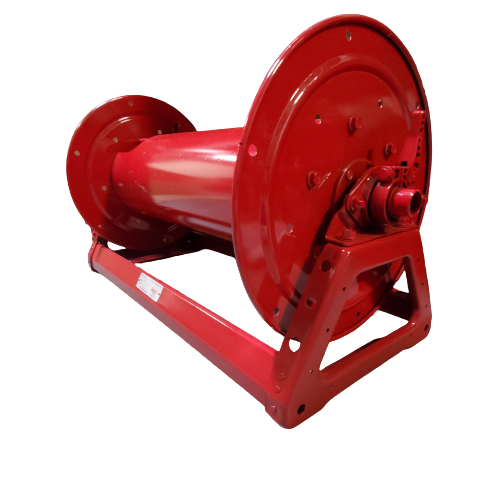

Hannay 4000 Series ~ Manual  & Electric Rewind Reels

*all of our Hannay Reels are painted red

*all of our Hannay Reels are painted red*all of our Hannay Reels are painted redHannay 4000 Series


  • 4034-17-18
  • E4034-17-18LT



  • Handles single 3/4" or 1" I.D. Hose
  • Lightweight, compact reels designed for long lengths of hose in manual and power rewind
  • Direct crank rewind is removable
  • Chain and sprocket drive powered by electric, hydraulic, or compressed air motor
  • Manual reels include cam-lock drag brake, spring-actuated pin lock
  • Comet brake is standard on power rewind reels
  • Standard inlet: 90° ball bearing swivel joint, 1" female NPT threads
  • Standard outlet: 1" female NPT threads
  • Optional rollers: specify roller position when ordering
  • Standard pressures to 2,000 psi (138 bar), available up to 4,000 psi (276 bar) – must specify
  • Temperatures from -60° F to +250° F (-51° C to +121° C)



Water Supply, Fire Protection, Chemical Transfer, Industrial, Spray, Grounds Maintenance, Lawn Care, Agriculture, Processing, Fire, Construction


4000 Series

Manual/Hand Crank

Electric Rewind

Air Rewind



Hose Length (ft.)

Weight (lbs.)

Hannay 4000 Series
