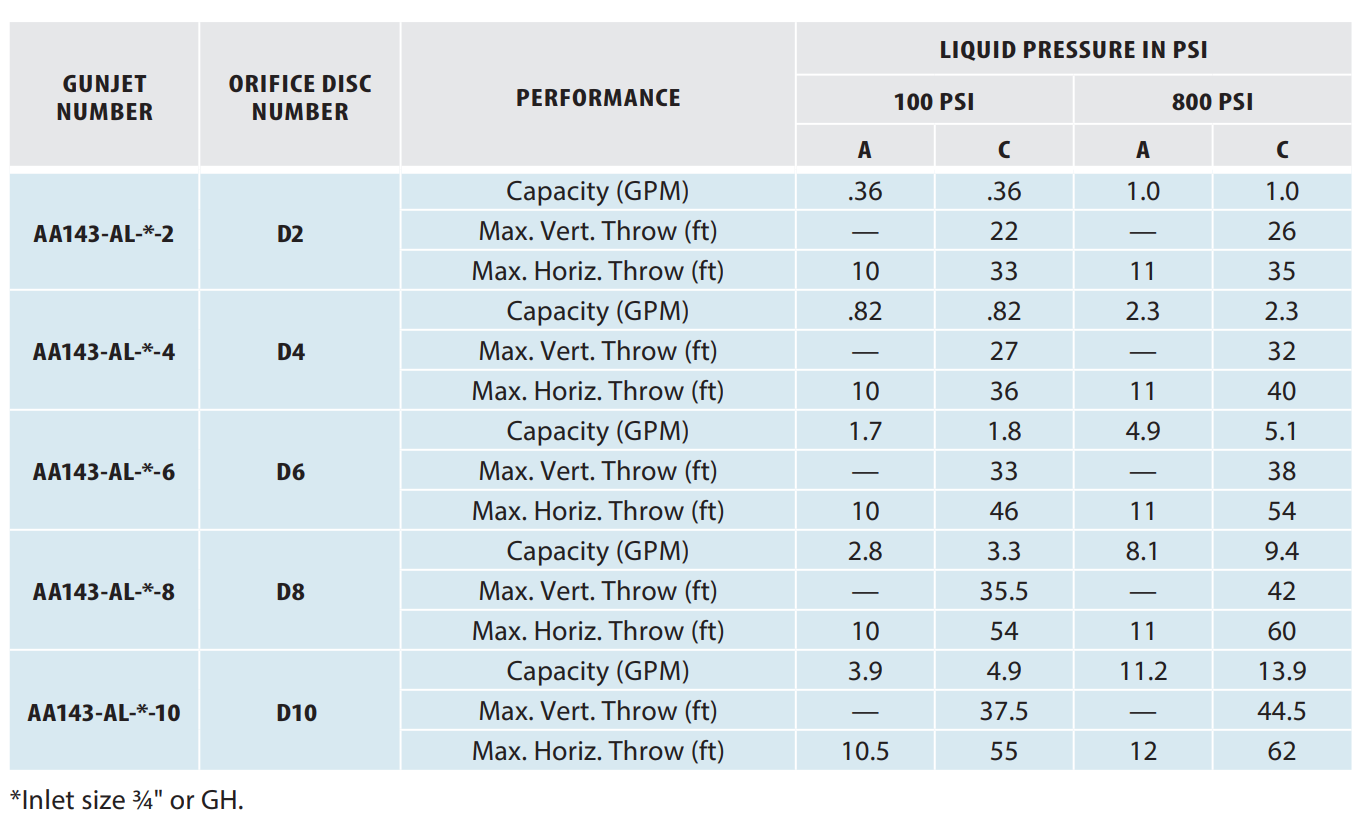

TeeJet Spray Guns
AA143
GunJet® Spray Gun
FEATURES:
-
For spot spraying, tree spraying, and livestock spraying at pressures from 30 PSI to 800 PSI.
-
Overall length 22-1/4", weight 1.25 pounds and only available in aluminum.
-
Inlets are available with 3/4" or GH (garden hose) female threads.
-
To operate spray gun, handle is rotated 360° from shutoff to maximum flow position. As handle is turned, spray changes from initial cone spray through intermediate cone spray to straight stream. Spray tips are interchangeable orifice discs made of corrosion- and erosion-resistant stainless steel.

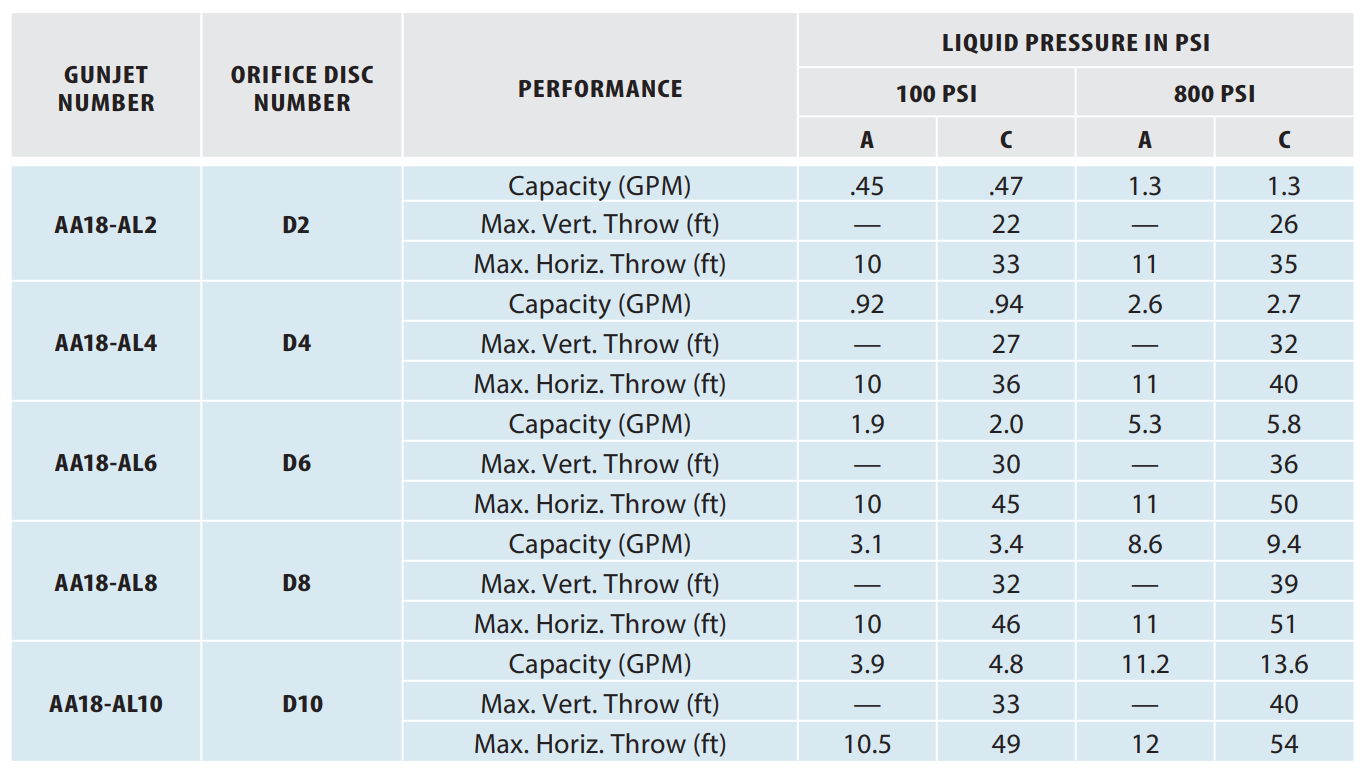

AA18
GunJet® Spray Gun
FEATURES:
-
For spot spraying, tree spraying, and livestock spraying at pressures from 30 PSI to 800 PSI.
-
Overall length 20", weight 1 pound, aluminum, 1/4 NPT (F) inlet connection.
-
Also available in brass.
-
To operate spray gun, handle is rotated 360° from shutoff to maximum flow position. As handle is turned, spray changes from initial cone spray through intermediate cone spray to straight stream. Spray tips are interchangeable orifice discs made of corrosion- and erosion-resistant stainless steel.

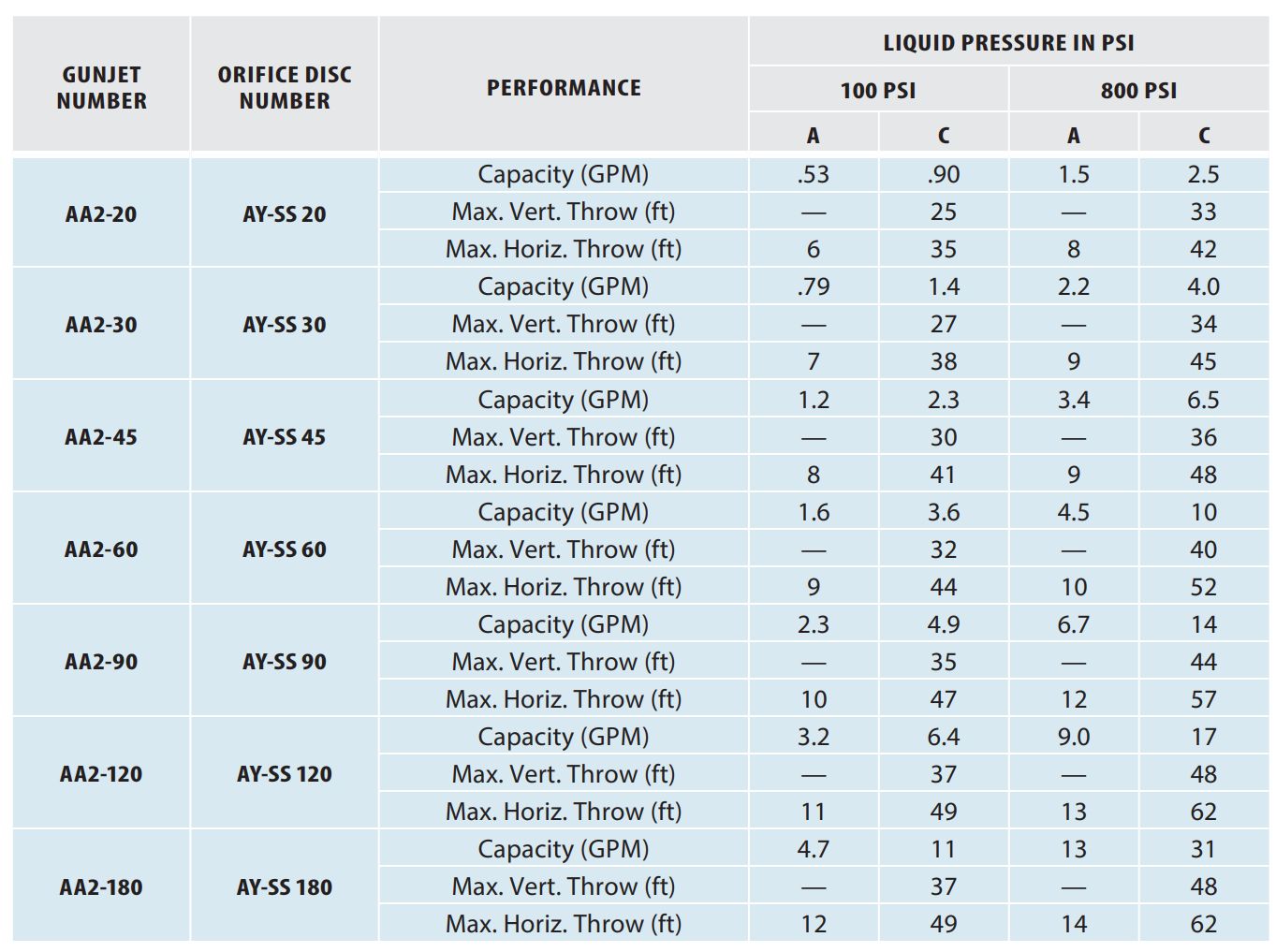

AA2
GunJet® Spray Gun
AA2A
FEATURES:
-
AA2: Overall length 24", weight 3.5 pounds, brass. 3/4" garden hose thread (F) inlet connection. Also available in aluminum as GunJet AA2-AL, weight 1.25 pounds.
-
AA2A: Overall length 15", weight 2.5 pounds, brass. 3/4" garden hose thread (F) inlet connection. Also available in aluminum as GunJet AA2A-AL, weight 1 pound. Same design as GunJet AA2.
-
To operate spray gun, handle is rotated 360° from shutoff to maximum flow position. As handle is turned, spray changes from initial cone spray through intermediate cone spray to straight stream. Spray tips are interchangeable orifice discs made of corrosion- and erosion-resistant stainless steel.
AA43
GunJet® Spray Gun
AA43
-
AA43L for operating pressures up to 200 PSI.
-
AA43H for operating pressures up to 800 PSI.
43A
43 L C-1/ 2 & 43 H C-1/ 2
FEATURES:
-
Designed and built for heavy-duty service.
-
Stem extends through extension to valve seat located directly behind orifice disc for drip-free shutoff and instant operating response.
-
Convenient trigger-lock for continuous spraying.
-
Trigger handle control: All models have 1/2" NPT or BSPT (F) inlet connections.
-
Exposed packing nut for easy adjustment of packing.
-
Available in aluminum or brass.
-
Types 43LC-1/2 and 43HC-1/2 have 1/2" NPT (F) outlet connections.
-
Inlet connections are 1/2" NPT or BSPT (F).
AA30
GunJet® Spray Guns
AA30A
Maximum pressure rating of 1,500 PSI with 5 GPM up to 200°F and ¼" (F) NPT or BSPT inlet thread. Materials including Nylon handles and trigger guards, forged brass valve bodies, Buna-N or FKM stem seals, PTFE valve seats and stainless steel working parts mean long, productive equipment life.
AA30L-PP
This version of the standard AA30L GunJet spray gun is constructed of polypropylene for excellent corrosion resistance. The maximum pressure rating is 150 PSI with flow rates up to 5 GPM. Liquid inlet connection available in 1/4" (F) NPT or BSPT. Wetted parts are polypropylene, stainless steel and FKM.

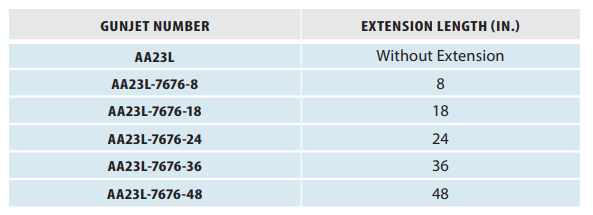

AA23L
GunJet® Spray Guns
The AA23L-7676 GunJet spray gun is also available without extension as GunJet spray gun AA23L. Flow rates up to 5 GPM. Maximum operating pressure of 250 PSI. Inlet 1/4" NPS (M) thread. Strong aluminum alloy body. When used with extension, the valve stem extends through the entire extension length for drip-free shutoff immediately behind the spray tip. Accommodates all interchangeable TeeJet spray tips.

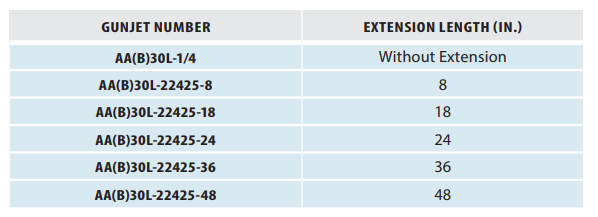

AA30L-22425
GunJet® Spray Guns
This version of the standard AA30L GunJet spray gun is constructed of polypropylene for excellent corrosion resistance. The maximum pressure rating is 150 PSI with flow rates up to 5 GPM. Liquid inlet connection available in 1/4" (F) NPT or BSPT. Wetted parts are polypropylene, stainless steel and FKM.
25660
TeeJet® Lawn Spray Guns
FEATURES:
-
Interchangeable nozzle tips are color coded for easy identification of nozzle tip size.
-
Nozzle tips provide a 45° full cone “showerhead” spray pattern.
-
Convenient trigger lock for continuous spraying.
-
Options available: hose shank swivel for inlet connection and extension wand and adapters for low-volume and spot spraying.
-
Maximum operating pressure of 200 PSI.
-
Made of nylon with FKM O-rings and stainless steel springs.
25990 SWIVEL
Allows operator to concentrate on application without hose interference. 3/4" (M) NPT connection with 1/2" hose shank. Maximum pressure 150 PSI.
25657-NYB ADAPTER
Replaces shower nozzle to allow extension wand or standard TeeJet tip to be attached directly to lawn spray gun. 3/4" (F) GHT inlet with 11/16"–16 TeeJet thread outlet. Maximum pressure 150 PSI. (ConeJet Nozzles at the bottom of this page).
22665 EXTENSION WAND
For low volume and spot spraying applications. Available in both 15" and 24" lengths, the extension fits on 25657-NYB adapter. Maximum pressure 150 PSI.
CP22673-PP & CP22664-PP ADAPTERS
Used for attaching standard TeeJet tips or adjustable ConeJet nozzles (see bottom of this page).

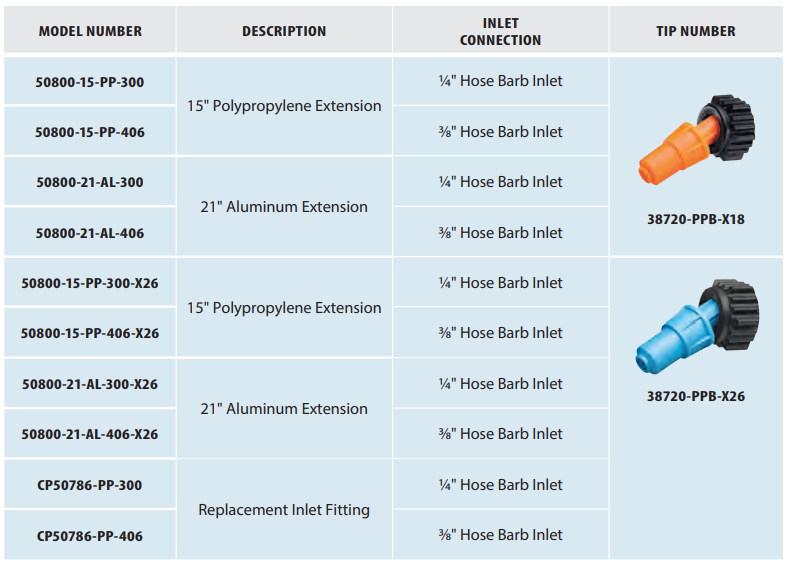

50800
TriggerJet® Spray Guns
The 50800 TriggerJet spray gun is a lightweight spray gun designed for use with backpack, canister or other low pressure sprayers. The TriggerJet is made of molded polypropylene for excellent chemical resistance and durability.
FEATURES:
-
Available with 15" polypropylene or 21" aluminum extension wand.
-
Available with 38720-PPB-X18 or X26 adjustable ConeJet® tips with a 30° offset.
-
Trigger lock permits locking gun in an open position for continuous flow.
-
Maximum operating pressure of 100 PSI.
-
1/4" or 3/8" hose shank connection.
-
Approximate max. hose O.D. – 1/2".
-
Polypropylene strainer located inside handle to prevent tip clogging.
50800 TRIGGERJET
LESS EXTENSION & TIP
-
Can be fitted with any standard TeeJet tip.

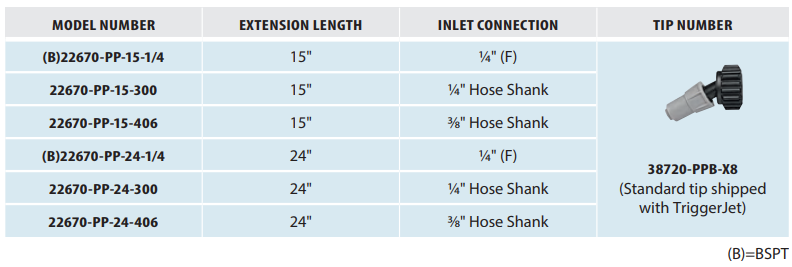

22670
TriggerJet® Spray Guns
The 22670 TriggerJet spray gun kit combines the 22650 TriggerJet spray gun with an extension wand, adapter, and adjustable ConeJet spray tip. Maximum pressure rating is 150 PSI.
FEATURES:
-
22650 TriggerJet spray gun with choice of 1/4" or 3/8" hose shank and a 1/4" NPT or BSPT (F) thread inlet connection.
-
Trigger lock permits locking gun in an open position for continuous flow (optional).
-
22665 extension wand with choice of 15" or 24" lengths.
-
38720-PPB-X8 adjustable ConeJet® spray tip with Viton® O-ring.
-
Accepts all standard TeeJet spray tips and tip strainers.

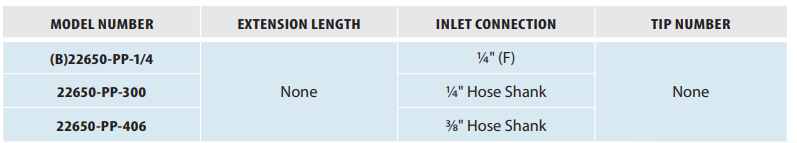

22650
TriggerJet® Spray Guns
The 22650 TriggerJet spray gun is a lightweight spray gun designed for use with backpack, canister or other low pressure sprayers. The TriggerJet is made of molded polypropylene for excellent chemical resistance and durability.
FEATURES:
-
Choice of 1/4" or 3/8" hose shank and 1/4" NPT or BSPT (F) thread inlet connection.
-
Replaceable diaphragm made of FKM.
-
Trigger lock permits locking gun in an open position for continuous flow (optional).
-
Maximum operating pressure of 150 PSI.
-
Accepts all standard TeeJet spray tips and tip strainers.
TeeJet® Valves
VALVES
Top quality hand valves for use with spray nozzles, extensions and handles to suit your application needs. Hand valve assemblies may be made from parts shown on this page. The “typical assembly” shown above includes 4727 handle, 4688 valve, 6671-18 curved extension with swivel body, TeeJet cap and flat spray tip.
6104 TRIGGER VALVE WITH TRIGGER LOCK
Same as 4688 except with 1/4" NPT (F) inlet and outlet connections. Brass material.
AA31
For pressures up to 500 PSI. Comfortable palm fitting gun. For use with any TeeJet spray tip. 1/4" NPS (M) inlet connection. Forged brass body and nickel-plated steel trigger. PTFE valve seat and packing, stainless steel valve stem. Also supplied as 31-1/4F with 1/4" NPT (F) inlet connection.
AA36
TRIGGER VALVE WITH TRIGGER LOCK
Choice of 1/4" NPT (F) inlet and outlet, or 3/8" NPT (F) inlet and outlet. Max pressure of 150 PSI. Brass or stainless steel material.
4688
TRIGGER VALVE WITH TRIGGER LOCK
Max flow rate 2 GPM, max pressure of 250 PSI. 1/4" NPT (F) inlet connection, 11/16"–16 (M) outlet connection. Brass material.
6466
TRIGGER VALVE
Same as 4688, less trigger lock, with extra long trigger. Brass material.
13212 ADAPTER
3/8" NPT (M) outlet, 3/4" garden hose thread inlet for use with 3/8" 36 valve. Brass material.
ConeJet® Adjustable Spray Tips
38720-PP
-
Provides adjustable spray from solid stream to a hollow cone pattern.
-
Made of polypropylene material for excellent chemical resistance.
-
Fits any 11/16"–16 TeeJet® male thread bodies.
-
30° offset from horizontal incorporated into main tip body.

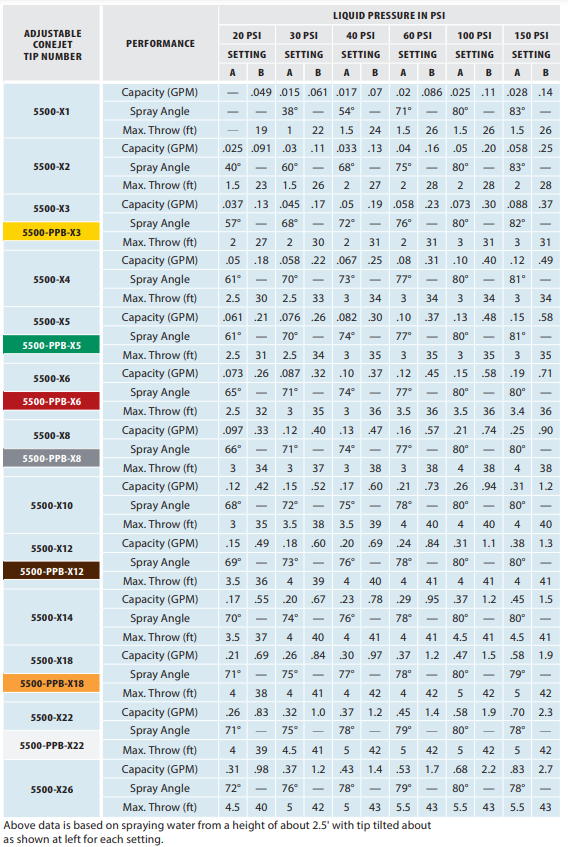

5500
Knurled body of tip rotates through a half turn to provide spray selection from wide angle, finely atomized cone spray to a straight stream spray. Tip settings “A” and “B” represent two extreme points of rotation in tip adjustment. Other sizes available.
5500-PP
The 5500 adjustable ConeJet® tip is also available in a polypropylene version. The polypropylene tip has the same performance characteristics as the brass tip and provides excellent chemical resistance. This tip’s light weight makes it well-suited for use on handheld and backpack type sprayers. O-Ring: EPDM is standard, FKM is optional.
